#242
Gravitropism and vesicular trafficking

Glenn Hicks (P.I.: Natasha Raikhel and Zhenbiao Yang)

Stephanie Robert, Jae-Ung Hwang and Shundai Li

It is known that there are genetic links between gravitropic response and the endomembrane system. Thus, a two-phase screening approach was employed for this screen that took advantage of this connection. The primary screen was for chemicals that affected root gravitropism; whereas the secondary screen examined directly the localization of endomembrane system fluorescent protein markers for altered compartment morphologies. SCREEN DETAILS: For the primary screen a total of 22,000 diverse chemicals were screened. The libraries were: 1) Sigma TimTec Myria Screen (MS) (10,000), 2) Chembridge Nova Core Library (NC) (10,000), and 3) Selected chemicals from Microsource Spectrum (SP). The MS and NC libraries were screened at a concentration of 50-100uM in 400ul of medium using either our custom chemical plates or standard 48-well microtiter plates. Seeds were germinated on media with chemicals. The plates were rotated 90 degrees 3-4 days post-germination and grown for an additional 24hrs. Chemicals that inhibited gravitropism were selected. For the secondary screen, seedlings expressing PIN2-GFP and markers for different endomembrane compartments were germinated and grown for 4-5 days on chemicals at concentrations below those of the primary screen. Overall, only compounds that altered marker localization and inhibited gravitropism were selected. Chemicals that primarily inhibited growth (and thus indirectly inhibited gravitropism) were excluded because they could target non-endomembrane pathways. SUMMARY STATISTICS: Of the 20,000 chemicals screened, a total of 669 (3.4%) (526 from the MS and 143 from the NC libraries) inhibited gravitropism in the primary screen. In the secondary screen, 63 of the 669 chemicals (0.3% of the 20,000) resulted in altered PIN2-GFP localization/expression. Among the 63 effectors of PIN2-GFP localization/expression, 9 inhibited root gravitropism without affecting root growth (0.05% of 20,000). Six of these 9 (0.03% of the 20,000) were confirmed to alter the localization/expression of PIN2-GFP or different endomembrane markers.

NSF: 2010-0520325

Visiable to everybody

Forward Screenyes Target Pathway

In total, 6 compounds from 2 libraries are annotated. Out of these, 6 have a score of 1 or higher, and 0 are annotated as inactive.

Download Download Compound IDs

Screen-level Files

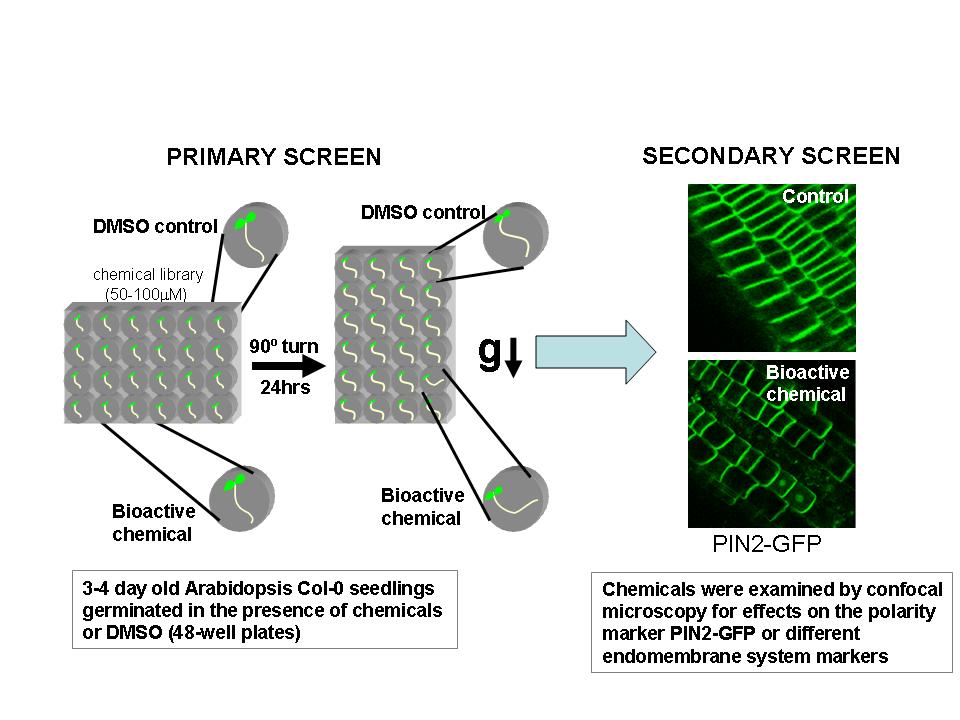

Screen Strategy

Gravitropism (primary), altered localization/expression of PIN2-GFP (secondary)

#15326

Download

Compound Files

Sigma-TimTec Myria Screen R412333

Library	Sigma-TimTec Myria Screen
ID	R412333
Name
Formula	C17H19NO3
Molecular Weight	285.338

Use in structure search

PIN2-GFP
Assay 1: 2

#117015

Assay 1: Gravitropism and vesicular trafficking

Description PIN2-GFP
Score 2: active in primary and secondary screen
Concentration 25-50uM

PIN2-GFP

25-50uM chemical (left) compared to DMSO control (right). Result: Reduced PIN2-GFP.

#15333

Main image

Reference

Download

PIN1-GFP

13-25uM chemical (left) compared to DMSO control (right). Result: Reduced PIN1-GFP.

#15335

Main image

Reference

Download

Phototropin1-GFP

25-50uM chemical (left) compared to DMSO control (right). Results: Similar

#15337

Main image

Reference

Download

PIP-GFP (plasma membrane)

25-50uM chemical (left) compared to DMSO control (right). Results: Modest mislocalization

#15339

Main image

Reference

Download

deltaTIP-GFP(Tonoplast)

25-50uM chemical (left) compared to DMSO control (right). Results: Modest effect

#15350

Main image

Reference

Download

Sigma-TimTec Myria Screen ST025823

Library	Sigma-TimTec Myria Screen
ID	ST025823
Name
Formula	C17H19ClN2O2
Molecular Weight	318.798

Use in structure search

PIN2-GFP
Assay 1: 2

#117014

Assay 1: Gravitropism and vesicular trafficking

Description PIN2-GFP
Score 2: active in primary and secondary screen
Concentration 3-5uM

PIN2-GFP

3-5uM chemical (left) compared to DMSO control (right). Results: Reduced PIN2-GFP

#15352

Main image

Reference

Download

PIN1-GFP (Plasma membrane)

25-50uM chemical (left) compared to DMSO control (right). Results: Reduced PIN1-GFP

#15354

Main image

Reference

Download

PIP (Plasma membrane)

25-50uM chemical (left) compared to DMSO control (right). Results: Similar

#15356

Main image

Reference

Download

deltaTIP-GFP (Tonoplast)

13-25uM chemical (left) compared to DMSO control (right). Results: Modest effect

#15358

Main image

Reference

Download

Sigma-TimTec Myria Screen R462438

Library	Sigma-TimTec Myria Screen
ID	R462438
Name
Formula	C13H9ClFNO3
Molecular Weight	281.667

Use in structure search

PIN2-GFP
Assay 1: 2

#117016

Assay 1: Gravitropism and vesicular trafficking

Description PIN2-GFP
Score 2: active in primary and secondary screen
Concentration 3-5uM

PIN2-GFP (Plasma membrane)

3-5uM chemical (left) compared to DMSO control (right). Result: Reduced PIN2-GFP

#15360

Main image

Reference

Download

PIN1-GFP

3-5uM chemical (left) compared to DMSO control (right). Results: Reduced PIN1-GFP

#15361

Main image

Reference

Download

Phototropin1-GFP (Plasma membrane)

25-50uM chemical (left) compared to DMSO control (right). Results: Reduced Phototropin1-GFP

#15362

Main image

Reference

Download

PIP-GFP (Plasma membrane)

25-50uM chemical (left) compared to DMSO control (right). Results: Modest mislocalization

#15363

Main image

Reference

Download

deltaTIP-GFP (Tonoplast)

25-50uM chemical (left) compared to DMSO control (right). Results: Mislocalization

#15364

Main image

Reference

Download

Sigma-TimTec Myria Screen R464481

Library	Sigma-TimTec Myria Screen
ID	R464481
Name
Formula	C9H11N3O3S2
Molecular Weight	273.332

Use in structure search

PIN2-GFP
Assay 1: 2

#117019

Assay 1: Gravitropism and vesicular trafficking

Description PIN2-GFP
Score 2: active in primary and secondary screen
Concentration 25-50uM

PIN2-GFP (Plasma membrane)

25-50uM chemical (left) compared to DMSO control (right). Results: Significant mislocalization

#15365

Main image

Reference

Download

PIN1-GFP (Plasma membrane)

25-50uM chemical (left) compared to DMSO control (right). Results: Reduced PIN1-GFP; mislocalization

#15366

Main image

Reference

Download

Phototropin1-GFP (Plasma membrane)

25-50uM chemical (left) compared to DMSO control (right). Results: Reduced Phototropin1-GFP

#15367

Main image

Reference

Download

PIP (Plasma membrane)

25-50uM chemical (left) compared to DMSO control (right). Results: Similar

#15368

Main image

Reference

Download

deltaTIP-GFP (Tonoplast)

25-50uM chemical (left) compared to DMSO control (right)

#15405

Main image

Reference

Download

Sigma-TimTec Myria Screen R478814

Library	Sigma-TimTec Myria Screen
ID	R478814
Name
Formula	C17H14Cl2N2O2S
Molecular Weight	381.276

Use in structure search

PIN2-GFP
Assay 1: 2

#117017

Assay 1: Gravitropism and vesicular trafficking

Description PIN2-GFP
Score 2: active in primary and secondary screen
Concentration 13-25uM

PIN2-GFP (plasma membrane)

13-25uM chemical (left) compared to DMSO control (right). Results: Reduced PIN2-GFP

#15406

Main image

Reference

Download

PIN1-GFP (Plasma membrane)

25-50uM chemical (left) compared to DMSO control (right). Results: Similar

#15407

Main image

Reference

Download

Photropin1-GFP

25-50uM chemical (left) compared to DMSO control (right). Results: Reduced Phototropin1-GFP

#15408

Main image

Reference

Download

PIP-GFP (Plasma membrane)

25-50uM chemical (left) compared to DMSO control (right). Results:Mislocalization

#15409

Main image

Reference

Download

deltaTIP-GFP (Tonoplast)

25-50uM chemical (left) compared to DMSO control (right)

#15410

Main image

Reference

Download

Microsource Spectrum 01500538

Library	Microsource Spectrum
ID	01500538
Name	SPECTINOMYCIN-HYDROCHLORIDE
Formula	C14H26Cl2N2O7
Molecular Weight	405.271

Use in structure search

PIN2-GFP
Assay 1: 2

#117018

Assay 1: Gravitropism and vesicular trafficking

Description PIN2-GFP
Score 2: active in primary and secondary screen
Concentration 25-50uM

PIN2-GFP (plasma membrane)

25-50uM chemical (left) compared to DMSO control (right). Results: Reduced PIN2-GFP

#15411

Main image

Reference

Download

PIN1-GFP (Plasma membrane)

25-50uM chemical (left) compared to DMSO control (right). Results: Modest reduction in PIN1-GFP

#15412

Main image

Reference

Download

Phototropin1-GFP (Plasma membrane)

25-50uM chemical (left) compared to DMSO control (right). Results: Similar

#15413

Main image

Reference

Download

PIP-GFP (plasma membrane)

25-50uM chemical (left) compared to DMSO control (right). Results: Similar

#15414

Main image

Reference

Download

deltaTIP-GFP (Tonoplast)

13-25uM chemical (left) compared to DMSO control (right)

#15415

Main image

Reference

Download
